Solution Architecture and Electronic Product Design

We help customers to define a complete solution architecture for their envisaged product. This covers a detailed requirement specification, block level design with its specifications, component selection, functionality, communication architecture and all needed time and cost efforts. We then help make a project plan and organize various agencies to perform the job.

The Solution Architecture provides insights to the following

• Design and Functional Specifications
• Mechanical Size and Fitments
• Block Level Design
• No of PCB's, PCB Types and approx sizes
• Critical components like MCU's , FPGA's etc
• Communication architecture if applicable
• Power Supply Requirements and battery management if applicable
• Embedded Architecture

Our experienced approach helps the customers visualize complete the product development with minumum cycle time, Minimizing Revisions, with high quality and optimized cost. Our component selection is based on years of experience and we choose cost effective components which are a right fit for the functionality.

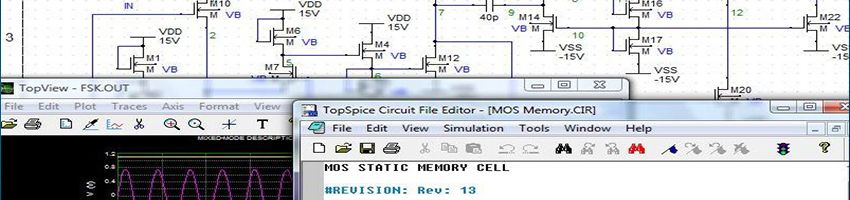

Schematic Evolution and PCB Layout

We have highly experienced engineers who can evolve the schematics from funcitonal blocks using EDA tools. They can also perform Simulations of specific blocks if needed. The schematic evolution needs highest expertise and knowledge of various active and passive components, their functions, packages, availability and cost.

Schematic Evolution and PCB Design Services include

• Development of Schematic from functional block involving selection of components.
• EDA entry to schematic with Rule based checks.
• DRC Checks and Netlist Checks
• Single Sided, Double Sided and Multilayer PCB design including controlled impedance routing
• Stack up and Gerber preparation
• CAM and Panelling
• BOM preparation with MPN
• Assembly Instructions

Prototyping, Testing and Certifications

We can undertake prototype assembly, testing and Certifications

• Prototype SMT Assembly
• Power Supply Testing
• Analog and Mixed Signal Testing
• RF Communications Testing
• Interface Ports and Communication Protocols testing
• 4G Cellular Testing
• LCD and HMI Testing
• Camera Vision Testing
• CE/UL/ ATeX Certification Documentation and Conformance Testing

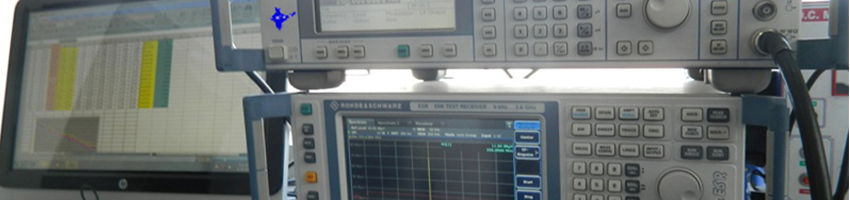

EMI/EMC Consultancy Services

Griffintech Solutions provides design consulting services covering EMI/EMC aspects. With sophisticated simulation equipment and testing facility, our experienced engineering team can help identifying design flaws in the first place. We can help you through the entire process of CE Marking and also testing as per various standards like IEC-61010, IEC-61000 , IEC-61326 etc.

The design consulting service covers these scopes:

• EMC/EMI and safety solutions
• PCB and component design to comply EMC testing
• CE Mark regulation compliance requirements
• Design consulting for safety compliance standard

Embedded Hardware and Software Design

We undertake MCU based designs including IoT Products. We have a rich experience in providing MCU based hardware and Embedded Software Services

We work following Architectures

• MCU and DSP - Microchip, ST Micro, NXP, TI, Analog Devices, Atmel, Renesas and Silicon Labs.
• RF and Wireless - Silicon Labs, uBlox, Telit , Quectel and Neoway
• Embedded Linux CPU - NXP, TI, Rockchip, Mediatek and Allwinner
• CPLD and FPGA - Altera Cyclone (AHDL), Quartus
• SOM - Toradex, RPi Compute, Technexion, Variscite,Omega and Portwell (x86)
• Embedded Linux Tools - Buildroot and Yocto
• Embedded Development - C/C++, Python with QT5
• Embedded OS - Debian based Linux including Ubuntu, Mendel (Google Coral),OpenWRT/LEDE
• AI and Camera Vision - Google Coral
• Prototyping – Raspberry PI, Orange Pi , Jetson Nano, Google Coral

We can work on other architectures as well.

The Embedded Design includes the CPU selection , its power and various interfacing like Memory,Keyboard, Display, Networking, Bluetooth, USB, printers, Wifi communication etc. We can also develop Custom LCD Displays.

PCB ICT Test Jigs

We have a very strong background of Test and Measurement and hence we can make compact and sophisticated Bed of Nails ICT PCB Test jigs needed for mass manufacture of products.

We have a unique capability of delivering binary image to the MCU via the SWD interface through the same ICT test Jigs.

We can develop Python or DOT NET Based Desktop softwares for udertaking comprehensive testing of PCB's

PCB ICT Test Jigs Features

• Manual Lever Operated or Pnuematic
• Camera QR Code or Bar Code Scanning
• Multiple PCB testing
• Secured Binary Code Flashing without access to the contract manufacturer
• Integrated Test and Measuring Devices
• Test Report Uploading to server

Knowledge Transfer

Griffintech Solutions undertakes Knowledge Transfer and aids the location shifting, training and handover of the compiled knowledge

Griffintech has experienced professionals who are Subject Matter Experts in their fields. Griffintech teams them up for undertaking the Knowledge Transfers.

Griffintech can then further assist in developing or customizing for India specific needs or organize handover to India located teams. We also organize contract manufacturing if required.

Griffintech has a strict non-compete policy in matters of Knowledge Transfer Projects.

Technology Expertise

• Embedded Hardware with Analog, Digital, Power and FPGA's.
• Embedded Software on C/C++ and Python
• Linux Based SOM's
• Mechanical Designs on Autocad, ProE or Solidworks
• Schematic and PCB designs
• VHDL and FPGA platforms

Application Domain Expertise

• Industrial Electronics and Automation
• Test and Measurement
• Media and entertainment
• IoT products with Sensors, RF Communications, and Gateways
• AI Edge Hardware
• Camera Vision
